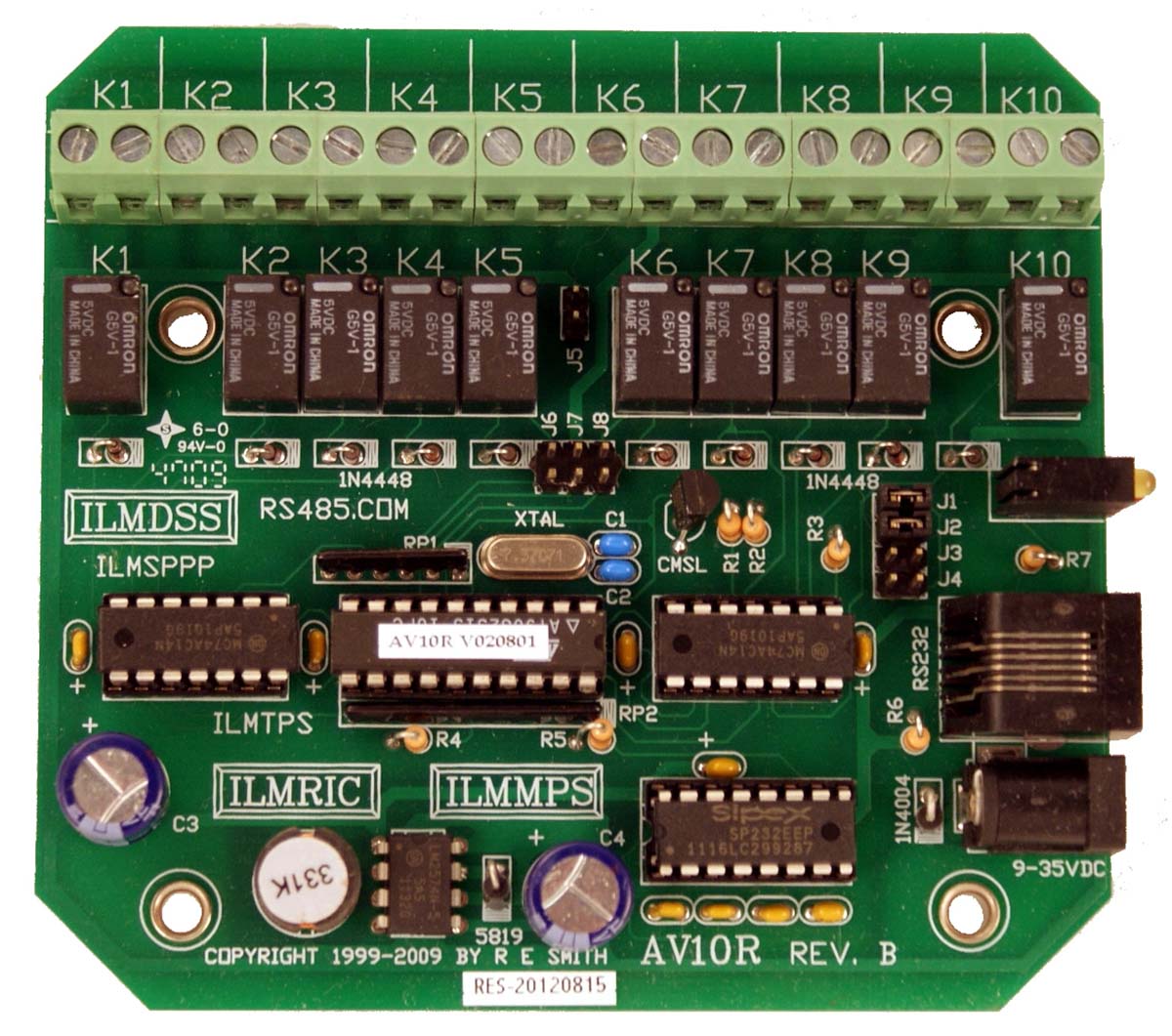

AV10R: RS232 Remote Controlled 10 Relay Output Board

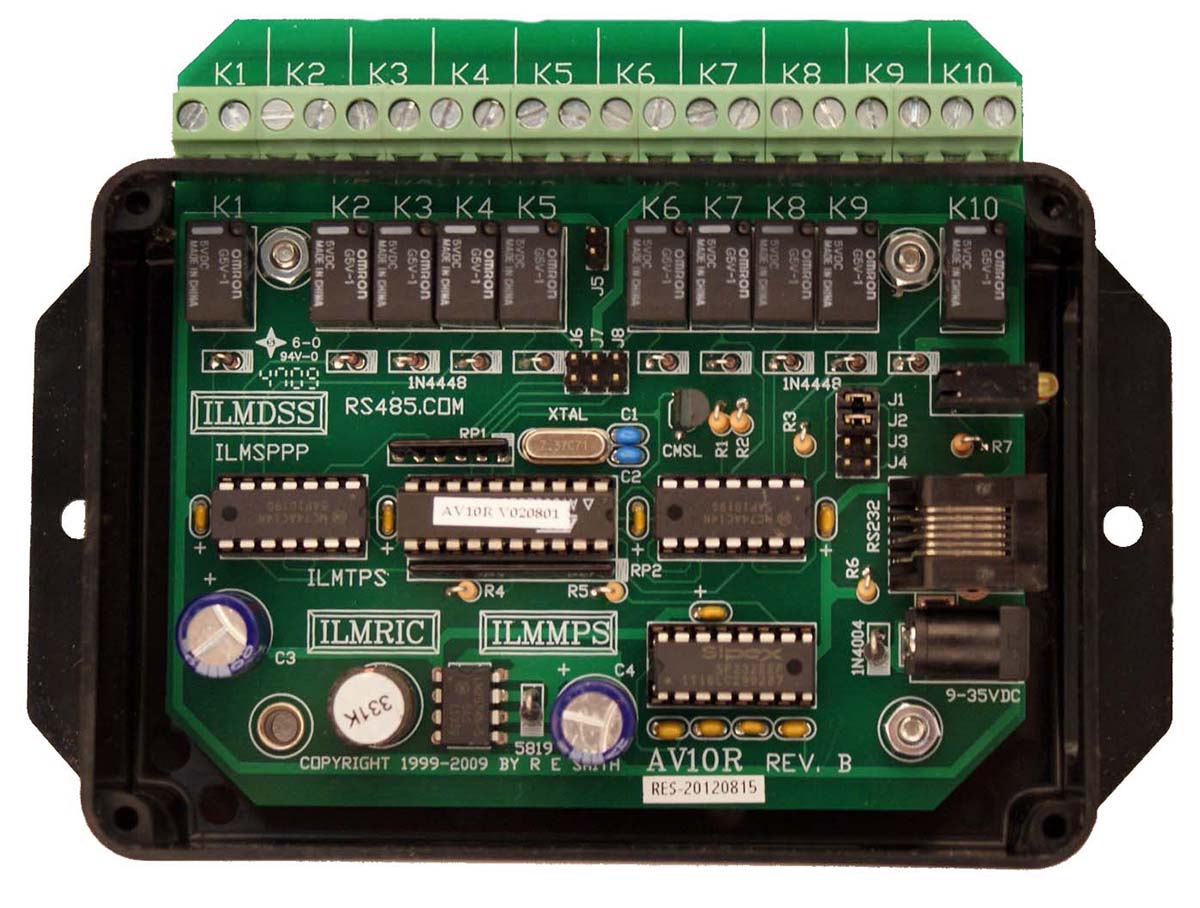

AV10R in Box

AV10R Label

"Let me spin a very large
RS485 network for you!"

  • Additional information coming soon!

General Description:

The AV10R features ten relay outputs that can be controlled through the RS232 serial port of a PC or other host computer. The AV10R communicates on RS232 at 9600 N,8,1 baud and is non-addressable. With this format, the unit is "always on" but only one board can be on a serial line.

Easy to use commands give full control of the boards functions. Two levels of pre-timers allow adjustments to the main timer intervals from 10ms to 650.25sec for an effective relay timer range of 10ms to 45+ hours, plus on and off.
Easy connections are possible with screw type connectors for the I/O, a barrel connector for power and a phone style RJ11/12 connector for communications.

The AV10R has an onboard switching regulator for 9-35VDC operation, LED indicators for transmit and receive status for the serial communications. 13 jumpers are available for flow control, optional inputs and in-circuit programming.

Originally designed for use with model trains, the unit can be used to switch anything within the range of the relays, which are rated for 1.0A @ 30VDC.

Available from R.E.Smith is a free program that facilitates serial communications testing.

Need something special? Please contact us. We have additional isolated and non-isolated converters, repeaters, and repeater hubs. Units are generally stock to 2-3 business days for shipment. We design and manufacturer our entire product line, and offer technical support for our units, and can offer system recommendations for your application. Please give us a call: 513-874-4796

Related Files:

pdf icon AV10R.pdf AV10R Schematic

Physical Properties and Features:

Additional information coming soon!


Additional information coming soon!

Options and Ordering Information:

Additional information coming soon!

Need a different configuration or more information? Give Ron a Call at 513-874-4796 or 513-638-0228(Cell)
