Welcome to our Ethernet ESPSX3 Serial Port Server Page
(updated Sept. 23, 2006)

Download the Latest Product Information and Software

Download/update the firmware for the ESPSX3 Board
(programming cable required - available from R. E. Smith)
New software and Users Guide now available.
The ESS3X64 with 3-RS232 ports and Digital I/O is now available. Call for info.

Aluminum Enclosure is now available.

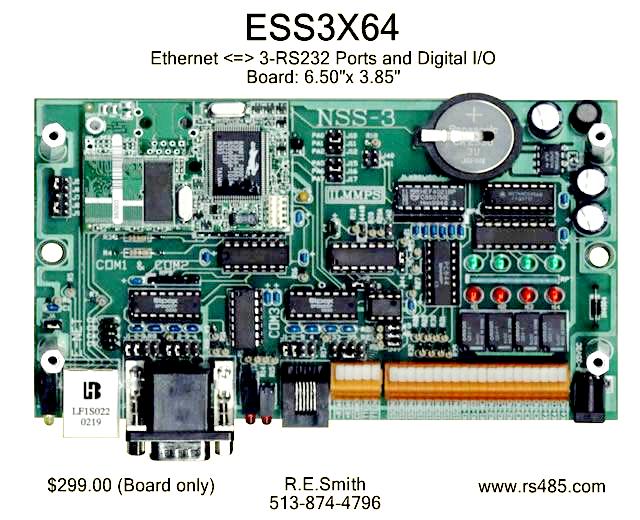

ESS3X64 - Ethernet to 3-RS232 Ports with Digital I/O is now available.

We are working on a new 3-Port Serial Server with Digital I/O (Relays/opto-in) - Call us.

Model ESPSX3: Ethernet 10 Base-T Serial Port Server (3-ports)


Click on image above for larger photo (Full configuration shown).


Connect to the ESPSX3 board (configuration/setup/home page) over the Internet. We have tested this connection with the Microsoft Internet Explorer V5.50, Netscape V4.51, V4.79, V6.2.1 and Opera 6.0.

Installation Instructions for ActiveX Control:
Operate the ESPSX3 board (serial ports) over the World Wide Web, using our ActiveX Control from the Microsoft Internet Explorer V5.0+ browser. It may be necessary to make changes to your Internet Security Options (Note: WARNING! You may want to restore some or all of your original security settings, after installing/operating our ActiveX Control from your browser). To change your Internet Options, to allow for download and operaton of our ActiveX control: go to Tools --> Internet Options --> Security Tab --> Custom Level... --> set Download unsigned ActiveX controls to Prompt --> set Run ActiveX controls and plug-ins to Enabled (or Prompt). Note: Click here for Microsoft Internet Explorer -- Internet Options -- screen shots.

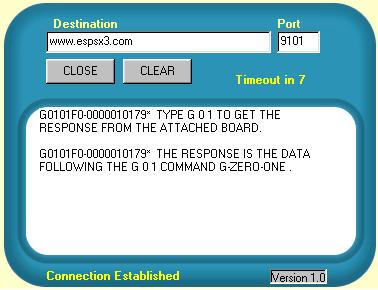

Your are now ready to download and install our ActiveX Control Example (81k). If Visual Basic is installed on your computer the control should install OK. If VB is NOT installed on your computer, additional elements will be installed from the Microsoft web site (it may be necessary to reboot your computer if VB is NOT installed). We are working on a method to control the ESPSX3 board from Netscape. Also, we will have an Internet Terminal Emulator (ActiveX control) in the near future, that will allow remote operation of our AT1616L I/O board using the ESPSX3 serial port server.

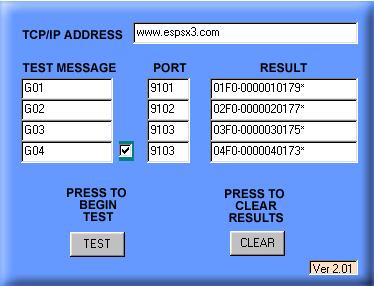

Screen Shot of our ActiveX Control
Click here to download/install this example control (81k).

R. E. Smith ESPSX3 Ethernet to RS232(3-wire)/RS485(Isolated)/RS422(Isolated) Serial Port Server (3 ports):

Our Ethernet to 3-port Serial Port Server is now available. This unit has 3-RS232 buffered (3-wire) ports. One of these ports can be used as RS232 or 3.0KV Opto/Xformer Isolated RS485/RS422. Check back soon or give us a call for the latest information. Download schematics, software, photo, and manual below. Call us about the standalone/transparent operating mode for the ESPSX3 ("serial extension cord/baud shifter" - way cool). The ESPSX3 full-configuration unit is $299.00ea. (qty. 1-9). An RS232 only version is $259.00ea. (qty. 1-9). Additional/ordering information below. Also, we have an Ethernet to Fiber Optic Converter (1 mile). See Ethernet 10 Base-T to Fiber Optic Converter (ST connectors) below. Coming soon: Ethernet to I/O Board with 24 optoisolated-inputs, 24 Form-C Relay outputs (stand-alone operation, 24 channels in each direction over the www, or computer control over local Ethernet or www.).

Download Files: (Note: See Download page for latest software and other information.)

ESPSX3manual-03-30-02.pdf (663k, ESPSX3, Ethernet Serial Port Server, Newest Manual Beta Version with - BOOTP)

ESPSX3manual-03-23-02.pdf (586k, ESPSX3, Ethernet Serial Port Server, Manual Beta Version with - BOOTP)

ESPSX3-original-manual.pdf (649k, ESPSX3, Ethernet Serial Port Server, Original Preliminary Information/Manual)

ESPSX3cpu.pdf (83k, ESPSX3, Ethernet Serial Port Server, CPU Schematic)

ESPSX3485.pdf (73k, ESPSX3, Ethernet Serial Port Server Isolated RS485/RS422, Schematic)

ESPSX3ss.pdf (179k, ESPSX3, Ethernet Serial Port Server, Physical Drawing)

RABBITcpu.pdf (65k, ESPSX3, Ethernet Serial Port Server Rabbit Module Pin-out, Schematic)

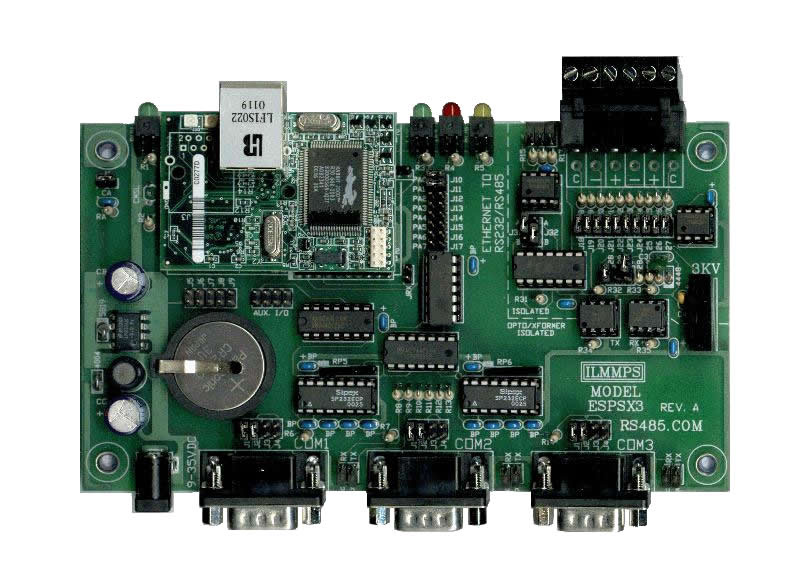

ESPSX3pcb.jpg (85k, Photo of ESPSX3, Large Image, Ethernet Serial Port Server, Circuit Board)

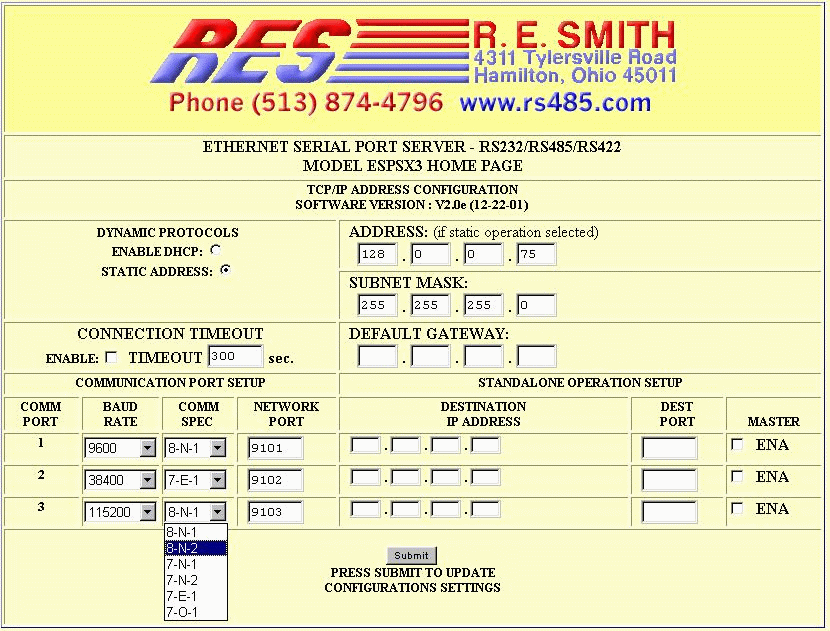

ESPSX3homepage.gif (105k, ESPSX3, Ethernet TCP/IP Configuration "Home Page" for web or serial port configuration)

ESPSX3, Ethernet Serial Port Server, Windows Configuration Utility Software, with Search function, Serial Port Configuration/Protocol, TCP/IP Terminal, and Test Screen, (No installation required. Works with all versions of Windows 95, 98, ME, 2000, NT, XP.) LINUX COMPATIBLE SOFTWARE AVAILABLE SOON.

ESPSX3configv2p1-06-30-02.exe (Version 2.1, 738k, 6-30-2002 latest version for all ESPSX3 software versions)

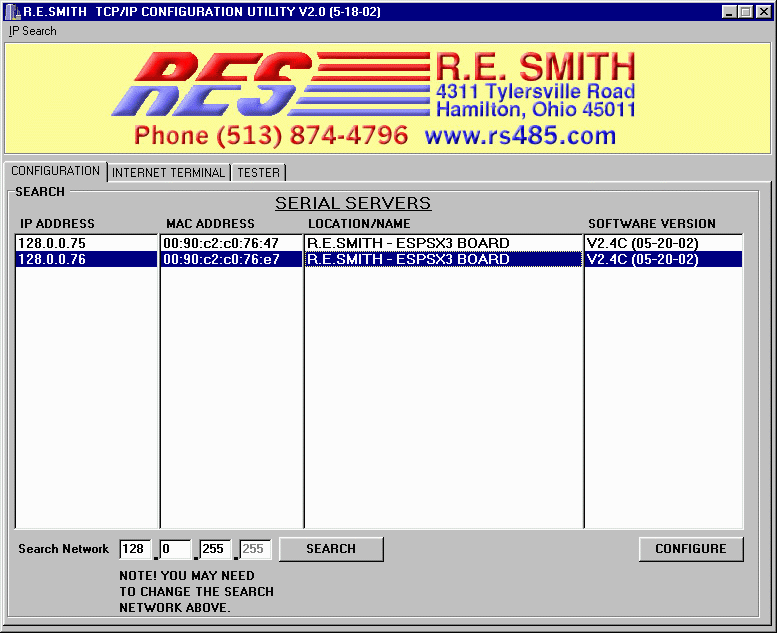

ESPSX3configuration.gif (50k, ESPSX3, Ethernet Serial Port Server, Windows Configuration Utility Image - Search - Main Page)

ESPSX3spconfig.gif (13k, ESPSX3, Ethernet Serial Port Server, Windows Configuration Utility Image - Serial Ports)

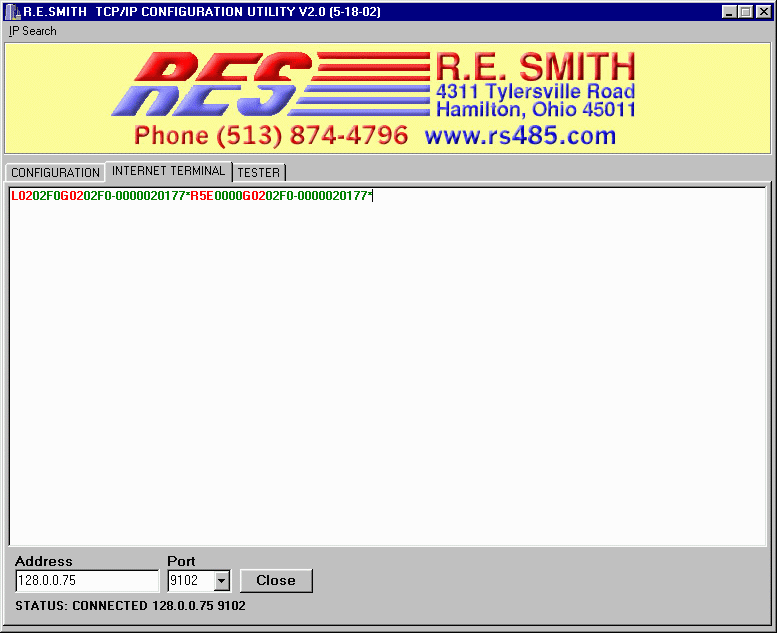

ESPSX3terminal.gif (46k, ESPSX3, Ethernet Serial Port Server, Windows Configuration Utility Image - TCP/IP Terminal Emulator)

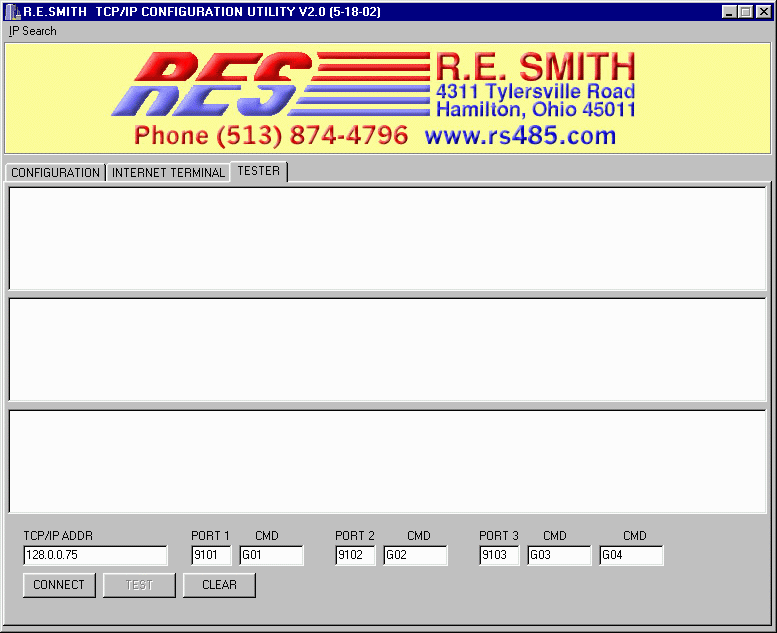

ESPSX3tester.gif (50k, ESPSX3, Ethernet Serial Port Server, Windows Configuration Utility Image - TCP/IP Serial Port Tester)


PHYSICAL PROPERTIES and FEATURES:
RS232: 3-wire interface to DB9M Connector (TX, RX, Common, loop back pins 4-6 & 7-8).
RS485: Removable screw terminal (TX/RX+, TX/RX-, Common). Shared with RS422 (3.0KV Isolation)
RS422 Removable screw terminal (TX+, TX-, RX+, RX-, Common). Shared with RS485 (3.0KV Isolation)
Power: 2.1mm center positive "Barrel" connector (9-35VDC), switching regulator.
LEDs (Ethernet) Power(YEL), Link(GRN), Active(RED), and Run(GRN). T1-3/4
LEDs (RS232/485/422) TxData(4-RED), RxData(4-GRN), Isolated Power(1-YEL) 2mm
RS485/422 Bias: 620 Ohm pull-up and pull-down (jumper selectable).
Termination: 120 Ohm (jumper selectable, split 240/240).
Special: Auto TX Enable, jumper selection for fast responding RS485/422 devices.
Protection: Up to 400W typical per SN75LBC184P specification.

SPECIFICATIONS:
Distance: RS485 up to 4000 ft. (1250 meters)
Operation: 2-wire half-duplex RS485 Data or 4-wire full-duplex RS422 Data.
Format: Asynchronous data 8-N-1, 8-N-2, 7-N-1, 7-N-2, 7-E-1, 7-O-1
Speed: 300 to 115.2Kbps (slew rate limited driver).
Temperature:   0-65C (32-150F) ambient.
Humidity: 10-90% non-condensing.
Voltage: 9-35VDC.
Power: Under 2.0 Watt(typical) + external load.
Size: 6.50" X 3.85" X 1.1" (PC Board), with connectors: 6.50" X 4.75 ".
Mounting: 4-Holes at 6.00" X 3.50" (built-in standoffs for #6 hardware).

OPTIONS AND ORDERING INFORMATION: (Model ESPSX3)
ESPSX3 (full config) $299.00 ea. (Circuit board only)
ESPSX3 (RS232 only) $259.00 ea. (Circuit board only)
Enclosure: $25.00 ea. (Metal box) available soon.
Supply: $7.50 ea. (9VDC @ 300 mA wall power supply)

EXAMPLE OF UNIT WITH ALL ACCESSORIES:
*ESPSX3-FC-BPS (full configuration) with all options (enclosure and power supply) @ $331.50 ea. (Qty. 1-9)
*ESPSX3-R3-BPS (RS232 only) with all options (enclosure and power supply) @ $291.50 ea. (Qty. 1-9)

Ethernet 10 Base-T to Fiber Optic Converter (ST connectors):

The KC-10TFT Ethernet media converter is designed to convert a 10 Base-T into Fiber optics, using ST connectors (multimode 62.5u) a distances of up to 2Km (1 mile +). Call for additional information.

Download:

KC10TFT.pdf (39k, Date Sheet for KC-10TFT Fiber to Ethernet 10 Base-T Converter )

KC10TFTmanual.pdf (110k, Manual for KC-10TFT Fiber to Ethernet 10 Base-T Converter)

KC10TFT.jpg (10k, Photo of KC-10TFT Fiber to Ethernet 10 Base-T Converter, Circuit Board

Please call us at: 513-874-4796

 Contact Information:
 R.E. Smith,  10330 Chester Road, Cincinnati, Ohio 45215
 513-874-4796 Phone, 513-874-1236 Fax., rs485.com
