• Fast auto TX-enable Isolated Async RS232 ó RS485 (2-wire, half-duplex) interface converter, powered by PC ISA bus card slot.
• Isolated fast auto TX-enable RS232 to RS485 interface converter for 2-wire, half-duplex communications, multi-drop communications, at distances up to 4000 ft. and data rates up to 115.2Kbps. Internal ISA bus powered unit.
• Galvanic (Opto/Xformer) Isolation helps eliminate noise, and protects equipment from destructive transients found in industrial applications.
GENERAL DESCRIPTION and TYPICAL APPLICATIONS:
The IPC24 is a fast Async bi-directional RS232 to RS485 interface converter for 2-wire, half-duplex applications, with an automatic TX enable circuit, that will operate at data rates up to 115.2Kbps. The unit has jumpers for bias, termination, and loop-back-test/normal operation. The unit has two LED indicators for TX-RS485(RED) data/RX-RS485(GRN) data, two DB9F connectors, and built-in transient protection. Galvanic isolation between the RS232 and RS485 helps to eliminate a wide variety of problems encountered in industrial and/or real world applications.
The IPC24 is designed for office and/or industrial applications, and provides an internal conversion from RS232 ó RS485 by obtaining power form an ISA bus card slot on a PC mother board. By connecting a cable from an existing RS232 port a conversion is made to Isolated RS485 and is available from a DB9F connector at the rear of the computer. The IPC24 can be used in outdoor applications; however, many factors can affect reliable operations. Please call for additional information and/or peruse our Fiber Optic product line (compatible with our "copper" converters).
| Download: | ||
|
IPC24.pdf | Converter schematic/physical |

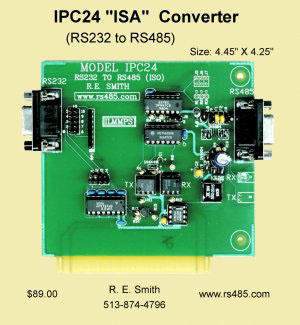

Click on this image of the IPC24 for full-size (163k) photograph:
 |
PHYSICAL PROPERTIES and FEATURES:
| RS232: | DB9F interface to RJ11/12 Connector (TX, RX, Common). |
| RS485: | DB9F (Common, TX/RX+, TX/RX-). |
| Power: | From PC ISA bus card slot. |
| LEDs | TX-RS485(RED), RX-RS485(GRN). |
| Bias: | 620 Ohm pull-up and pull-down (jumper selectable). |
| Termination: | 120 Ohm (jumper selectable). |
| Special: | Internal conversion using PC ISA bus slot and RS232 port. |
| Protection: | Dual P6KE6.8A Transient Voltage Suppressors inside 1N4004 diode bridge circuit, on RS485 TX/RX data lines and 1500VDC, 1 sec. Galvanic isolation. |
SPECIFICATIONS:
| Distance: | RS485 up to 4000 ft. (1250 meters). |
| Operation: | 2-wire, half-duplex RS485. |
| Format: | Asynchronous data with any combination of bits, parity, stop. |
| Speed: | Up to 115.2Kbps. |
| Temperarure: | 0-65C (32-150F) ambient. |
| Humidity: | 10-90% non-condensing. |
| Voltage: | +5V from ISA bus card slot. |
| Power: | Under 3/4 Watt (typical) + external load. |
| Size: | 4.45" X 4.25" X 0.7" (PC Board), with connectors: 5.05" X 4.25" |
| Mounting: | PC ISA bus card slot with metal bracket. |
OPTIONS AND ORDERING INFORMATION: (MODEL IPC24)
| IPC24: | $89.00 ea. (Circuit board and metal bracket) |
| Enclosure: | None |
| Cable: | None available |
| Supply: | PC ISA bus card slot powered |
| *IPC24 (no options available) @ $89.00 ea. (Qty. 1-9) |
