SSAC44T: RS232 ↔ RS485/RS422 with LED Indicators

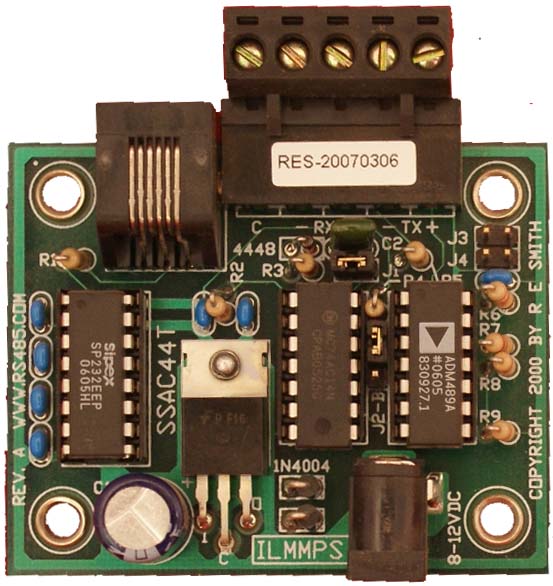

SSAC44T

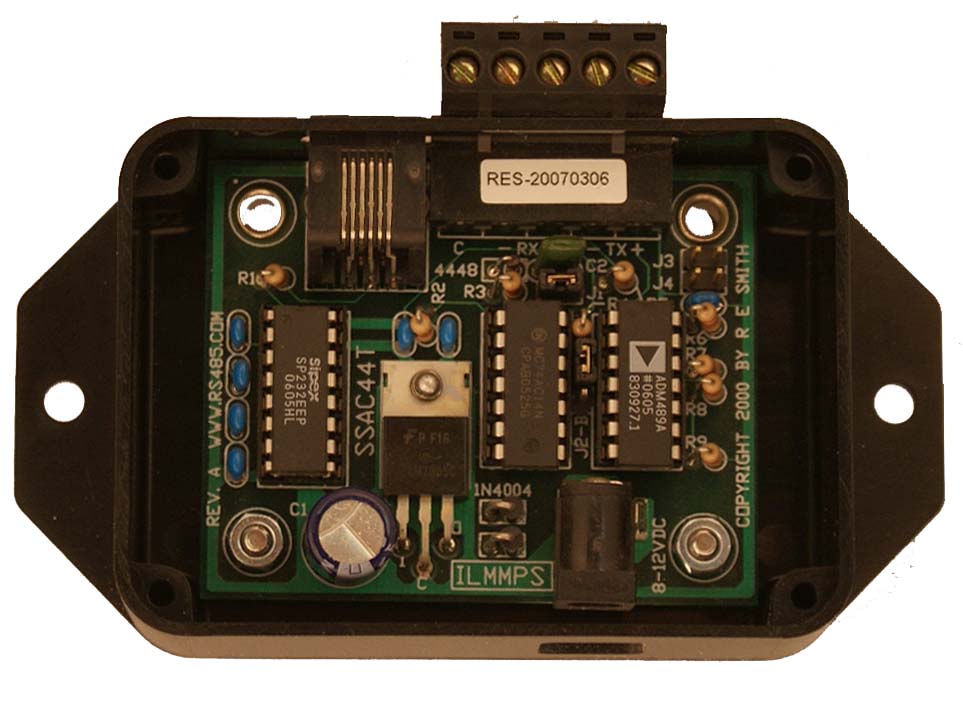

SSAC44T with Box

SSAC44T Label

"Let me spin a very large
RS485 network for you!"

spider

General Description:

The SS (super simple) series of Converters have a minimum number of configuration jumpers and, in general, will allow RS485/RS422 connections using Category-5 cable. Some models can even supply power to a remote converter over the Cat-5 cable. These units should NOT be connected to the Ethernet.

The SSAC44T can convert RS232 ↔ RS485(2-wire) or RS232 ↔ RS422(4-wire) via jumper selection. An Automatic Transmit Enable circuit is provided for either mode of operation. The operating temperature range is -40C to +85C.

Need something special? Please contact us. We have additional isolated and non-isolated converters, repeaters, and repeater hubs. Units are generally stock to 2-3 business days for shipment. We design and manufacturer our entire product line, and offer technical support for our units, and can offer system recommendations for your application. Please give us a call: 513-874-4796

Related Files:

pdf icon
Converter schematic/physical Rev. A

Options and Ordering Information:

SSAC44T: $46.00 ea. (Circuit board only)
Enclosure: $8.00 ea. (Small)
Cable: $7.50 ea. (RS232, 7 ft., Specify DB9F-7 or DB25F-7)
Supply: $8.50 ea. (12VDC @ 200/300 mA wall power supply)

*SSAC44T with all options (DB9F cable/Enclosure/PS): SSAC44T-B9FSPS @ $70.00 ea. (Qty. 1-9)

Need a different configuration or more information? Give Ron a Call at 513-874-4796 or 513-638-0228(Cell)
