DSC2: Wiegand Card Reader MicroController

DSC2

"Let me spin a very large
RS485 network for you!"

spider
  • Additional information coming soon!

General Description:

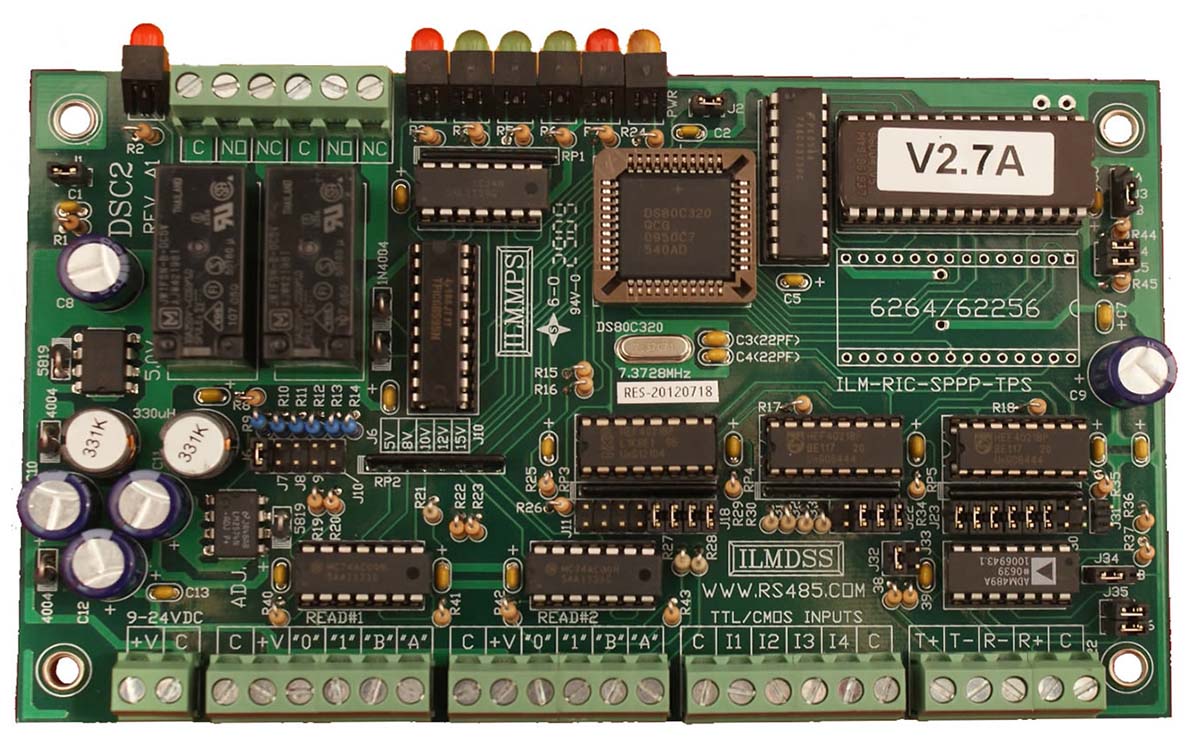

The DSC2 is an 8051 based microcontroller (DS80C320) with 2-Wiegand Card Reader control/ interface ports and resources for 4 TTL/CMOS inputs, 2 relay outputs (Form A, 30Vdc @ 1A max.), and 3 additional TTL/CMOS outputs for the readers. In addition the unit can sense several jumper settings, has 7 onboard LED indicators and, a socket for an optional battery backed clock/calendar/RAM. The DSC2 has an addressable (8-bit) RS485 communications port for operation up to 115.2K Baud. An onboard switching regulator allows for 9-35VDC operation of the unit.

Need something special? Please contact us. We have additional isolated and non-isolated converters, repeaters, and repeater hubs. Units are generally stock to 2-3 business days for shipment. We design and manufacturer our entire product line, and offer technical support for our units, and can offer system recommendations for your application. Please give us a call: 513-874-4796

Related Files:

pdf icon DSC2CP.pdf DSC2 CPU Schematic
pdf icon DSC2IO.pdf DSC2 IO Schematic
pdf icon DSC2SW.pdf Layout Schematic
pdf icon DSC2v2.7aManual.pdf Manual (Version 2.7A)

Physical Properties and Features:

Additional information coming soon!

Specifications:

Additional information coming soon!

Options and Ordering Information:

Additional information coming soon!


Need a different configuration or more information? Give Ron a Call at 513-874-4796 or 513-638-0228(Cell)
