IRSFRQ Quad Isolated RS485 Repeater


General Description:
The IRSFRQ is a quad, 1500VDC opto-isolated RS485-RS485 repeater (up to 115.2K bps) which features automatic data direction control to avoid data collisions common in half-duplex RS485 systems. The unit can be used to form very large RS485 networks in both single-master and multi-master systems. By cascading multiple units, networks of virtually any topology can be constructed. On-board bias, termination, transient protection and communications fuses are standard. High-efficiency switching regulator allows for 9-35VDC operation. Board size is 5.25" x 9.75".
Download:
IRSFRQ.pdf Quad Repeater schematic

IRSFRQBR.pdf Baud Rate and Jumpers

IRSFRNET.pdf Typical Large RS485 network

IRSFRQDB.pdf Additional information

IRSFRQ22.pdf Using the IRSFRQ as an
Isolated RS422 Repeater

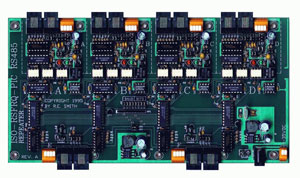

Click on the image for a larger view:
