General Description:
The AT444A is an Analog and Digital I/O Board with 4 Opto-Isolated Inputs, 4
Form-A Relays, 4 buffered 10-bit Analog Inputs, removable terminals, on-board
manual switch override of relays and RS485 Serial Port.
| Download: | ||
|
AT444ACPU.pdf | Schematic - CPU |
|
AT444AAIN.pdf | Schematic - Analog |
|
AT444ADIO.pdf | Schematic - Digital I/O |
|
AT444ASS.pdf | Schematic-Jumpers/Physical |

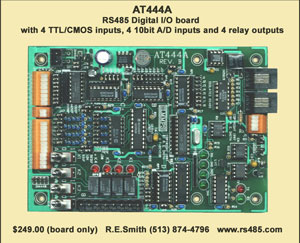

Click on this image of the AT444A for a larger photograph:
 |
